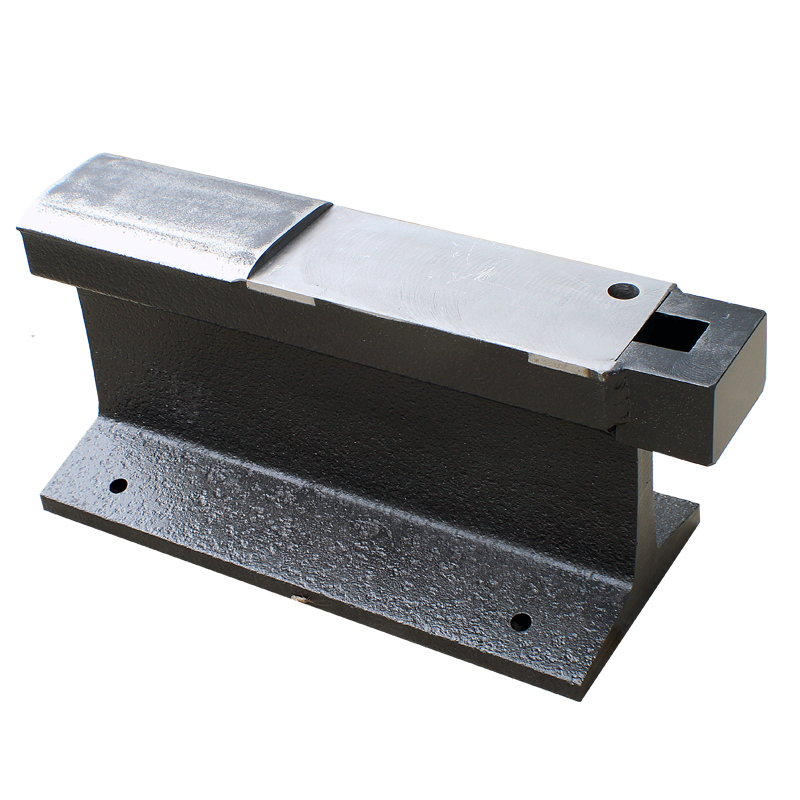

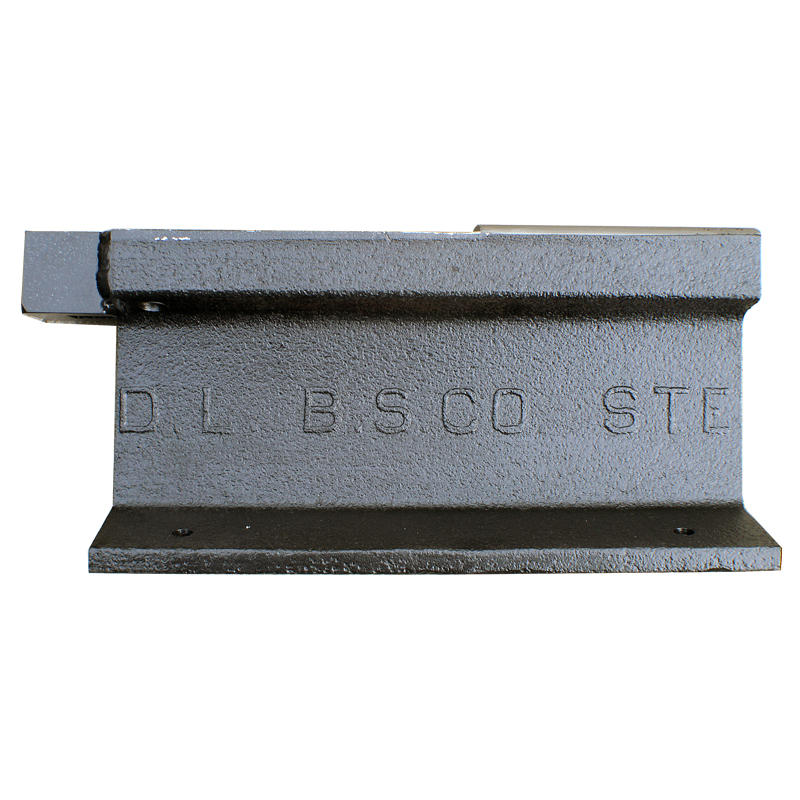

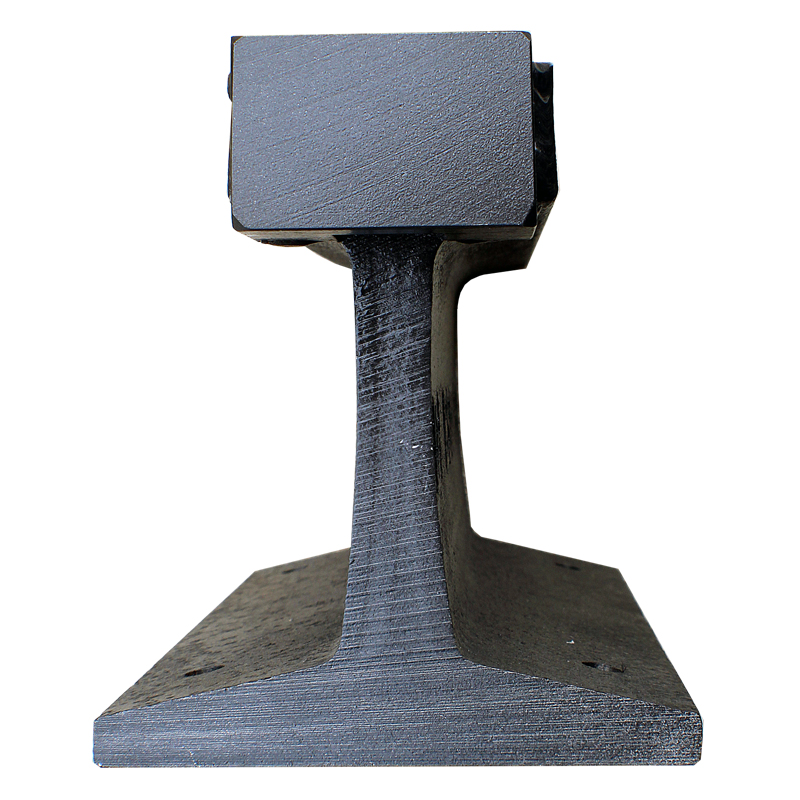

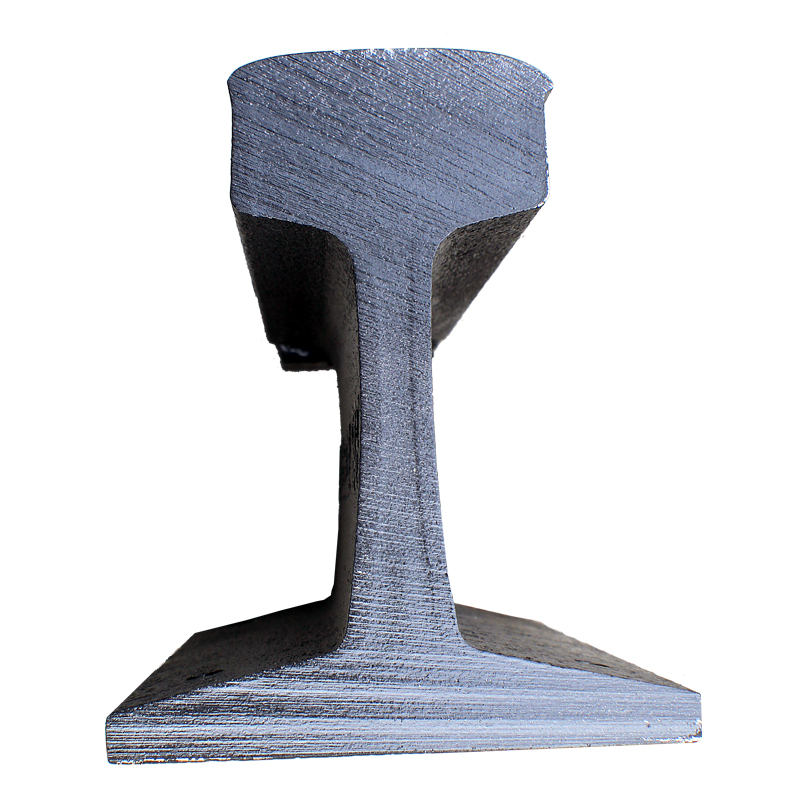

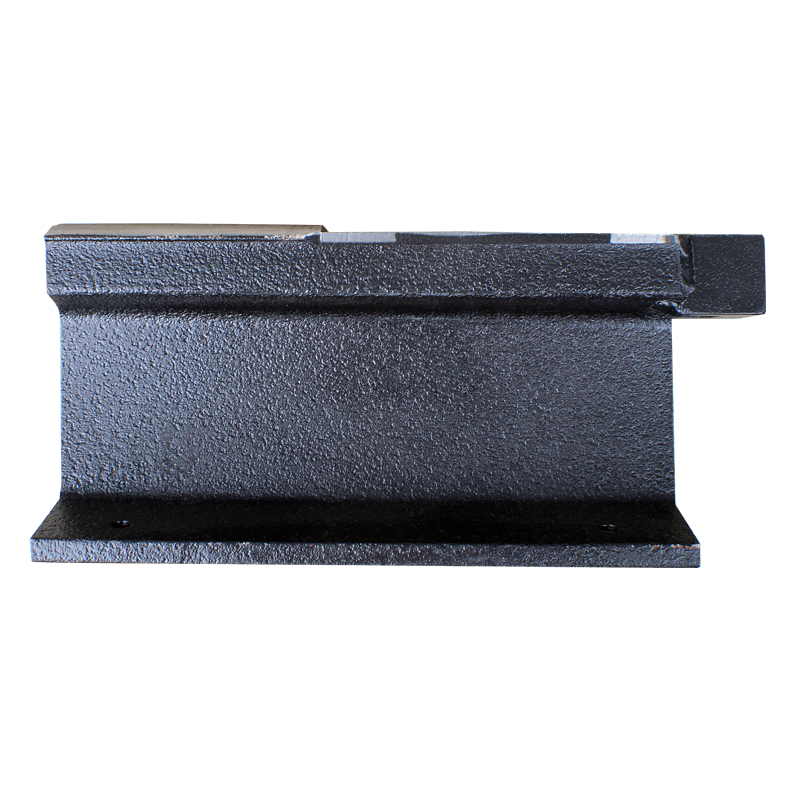

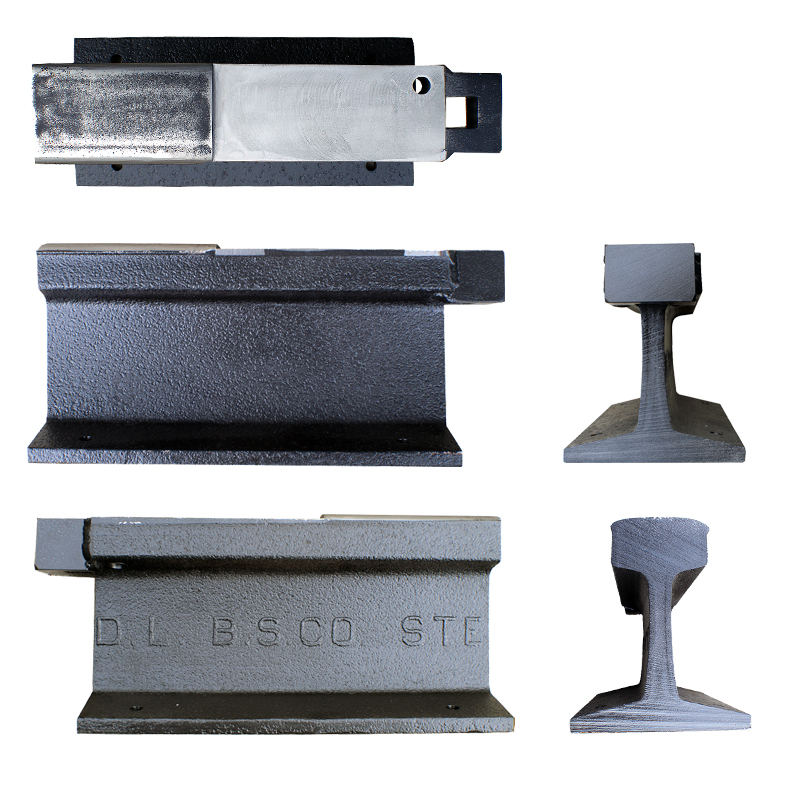

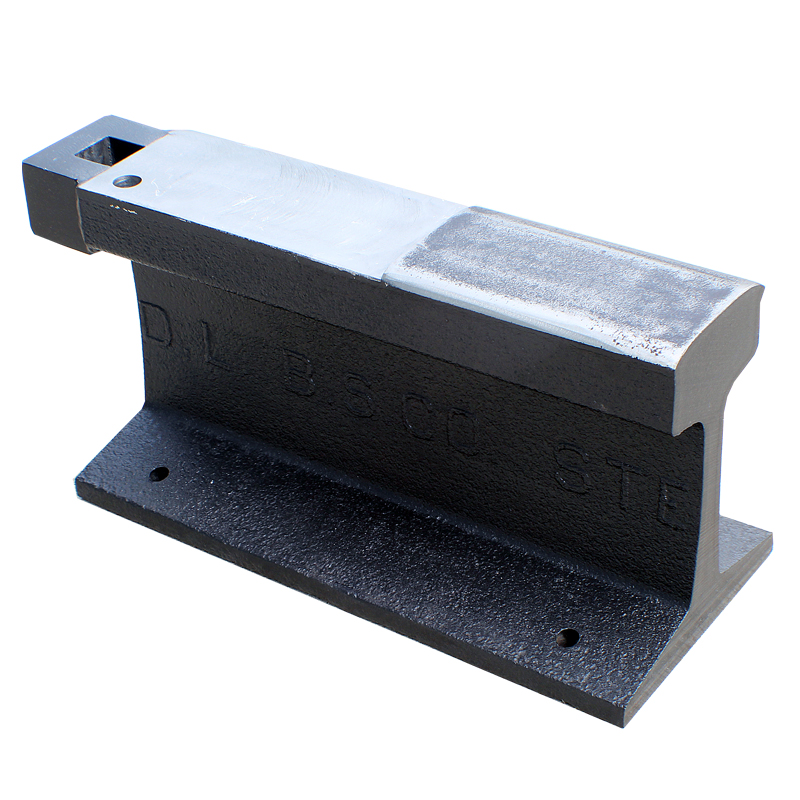

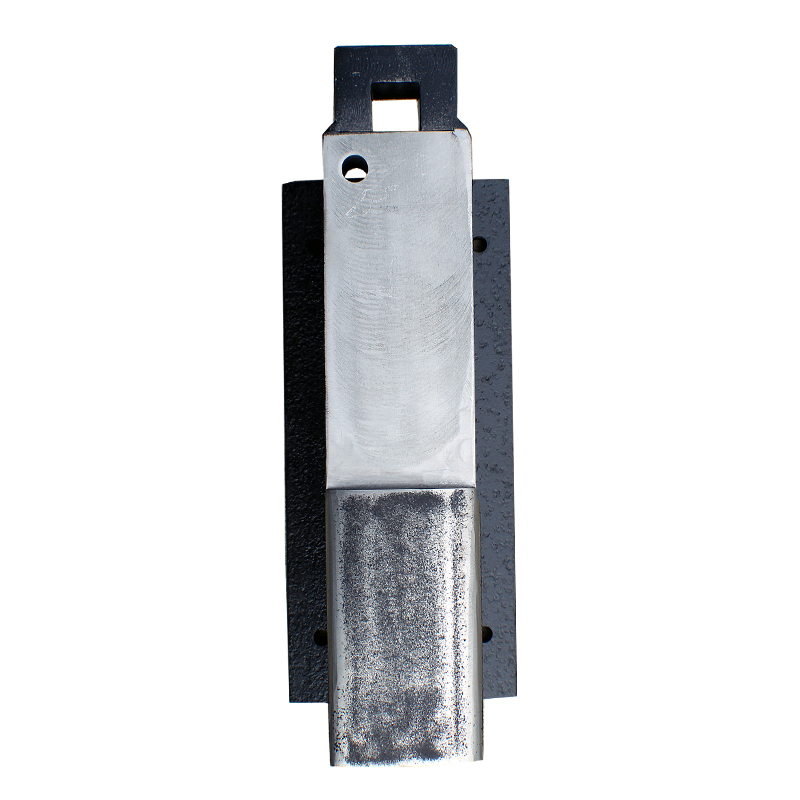

The Centaur Track Anvil is made from a 12” long piece of 115 RE Relay rail. The good news is that this steel is hard as hard could be. You can hammer away and the surface will endure incredibly well. The bad news is that machining the top surface flat is very costly. Hence the price charged. In addition there is a hardie hole, a pritchel hole and four anchoring holes added.
Weighs 37 lbs.
Overall length: 13-3/4"
Flat Face Dimensions: 6-3/4" x 2-7/8"
Bowed Face Dimensions: 5-1/4" x 2-7/8"
Anvil Face is 1-1/4" thick by 12" long
Base (footprint): 12" x 5-1/4"
Overall Height" 6-5/8"
Hardie Hole: 7/8"
3/8" Pritchel Hole
1-1/4" Extension for the Hardie Hole
Note: the Hardie Hole Extension is not heat treated
The Hardie Hole Extension is welded on and should not be used as part of the striking surface. Because the Track Anvils are made from used railroad tracks, the non-machined faces will vary.
