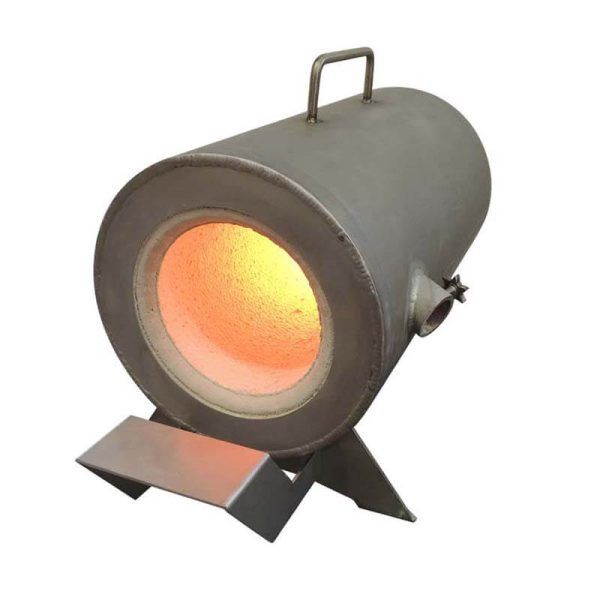

Hot enough to forge weld!

• Chamber measures 5" diameter × 13"
• 4" × 2"‘ rear opening
• Max temp of 2300° F
• 390+ BTU per cubic inch
• Laser welded leg plates

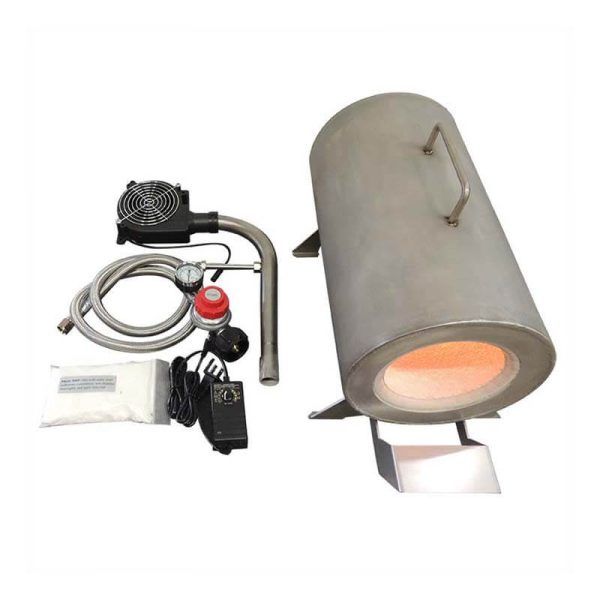

Includes:

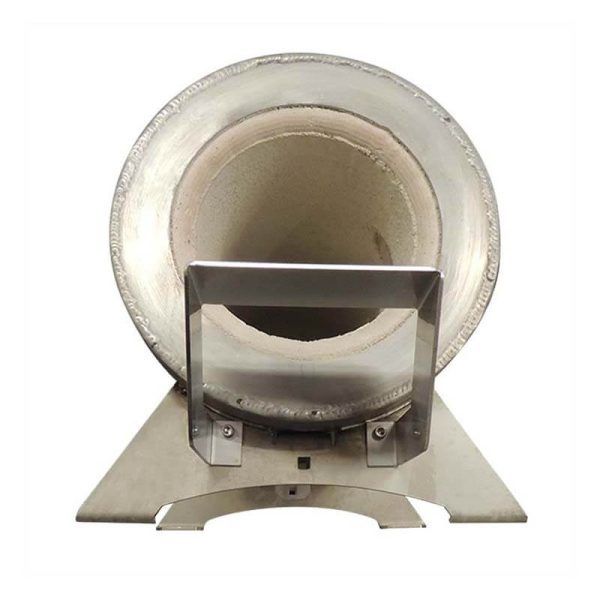

• Forge w/ removable tool rest

• 0-20 PSI regulator w/hose connects to 20lb. propane tanks

• New Firestorm hybrid 100k BTU blown burner (12VDC powered wall transformer)

• 16 oz Plistix 900F

Set up run on Propane Gas.

Want a better forge for bladesmithing, one that’s going to last longer, get hotter, and use less propane than forges on eBay and Amazon?  Then this is for you.  With a 5" diameter x 13" long chamber, the Graham has plenty of room for even the biggest kukri, and hot enough for big billets of damascus.  The hybrid venturi/blown burner is safer and hotter, while providing easier control of the atmosphere.

The Graham forge uses Kastolite 50-25 plus cast refractory, cured and baked for 6 hours at 450°F.  Ready to use right out of the box and it will last much longer than wool based forges.

We include a bag of Plistix 900f. Although not required for use, this easy-to-apply refractory is painted on the inside of the chamber and improves efficiency. Simply mix with water, wet the chamber with a squirt bottle or wet rag and paint the 900f on.

We also improved the construction level of this forge.  With 1/8" thick stainless tubing, TIG welded end plates, and a tough, cast refractory shell, it’s built to last!
